X5 HazLo

The X5 HazLo is a UL-listed, Class I Division 2 hazardous location VFD.

Based upon Vacon's X-Series VFD, the X5 HazLo was modified to operate in classified CID2 atmospheres. The compact VFD is available in carbon steel - painted safety yellow, or 316 stainless steel. The enclosure is rated NEMA Type 4X / IP66 for use indoor or outdoor while operating in temperatures from -10ºC to 40ºC.

The drive supports input voltage of 480V or 575V, 3-PH with power output of 10 HP to 100 HP normal duty / variable torque. The X5 HazLo is passive-cooled and does not require purged-air to operate. The drive can be installed close the motor / application within the classified area. The benefits include greater installation flexibility, improved operator efficiency and safety through direct access to VFD operation, reduced installation costs and prevents technical issues like motor harmonics due to long-motor lead lengths.


Features

UL-listed, Class I Division 2 (CID2)

The X5 HazLo is certified by UL to comply with ANSI / ISA 12.12.01 "non-incendive electrical equipment for use in Class I and II, Division 2 and Class III Division 1 and 2 hazardous (classified) locations. The X5 HazLo is also approved per CAN / CSA C22.2 for Class I Division 2 hazardous locations.

The X5 HazLo VFD can be installed directly within the rated area without being fitted inside a larger Type 7 enclosure and without purged-air to operate. The drive can be operated immediately as there is no purge-startup delay.

Enclosure

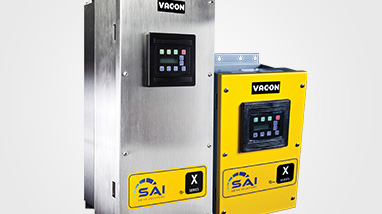

The X5 HazLo is a stand-alone, wall-mounted VFD, suitable for indoor or outdoor use. The enclosure comes in carbon steel - painted safety-yellow, or 316 stainless steel for enhanced corrosion resistance. Both models are Type 4X / IP66 rated.

saidrive hazlo ul class1div2 left yellow 289 saidrive hazlo ul class1div2 right stainless 289
Carbon steel (painted safety yellow) 316 Stainless Steel Enclosure

Operating Temperature

The X5 HazLo is designed to work in all-weather conditions. The drive is rated to operate -10ºC to 40ºC. For extreme cold, the drive has a feature called 'Arctic Mode' which uses the built-in brake resistor to function as a warming heater.

No temperature de-rating required up to 50ºC. No air-conditioning required

VFD Programming

The drive offers a PLC-like 25-step program sequencer. With support for macro’s using loop and branch capabilities. Programming and drive operation can be performed via the HMI and keypad. The HMI offers a bright, two-line, back-lit LCD panel.

USB Port for Backup / Parameter Transfer

The drive includes a USB port to allow fast parameter save and recall. The USB can be used for programming multiple drives. VFD data can be saved to the USB and opened with Microsoft Excel. The USB port is also used for firmware upgrades.

Real-Time Clock Function

The VFD includes a real-time clock (RTC) to control operation based on time-of-day. As an example, you may have different program settings for different days of the week or weekdays vs weekends.

Communications

The X5 HazLo includes ModBus RTU via RS 485 as standard. Additional protocols can be supported via optional add-in cards:

  • 115 Vac and encoder feedback (order code X5OPT01X)
  • Ethernet IP (order code X5EIP01X)
  • DeviceNet (order code X5DNET01X)
  • ModBus TCP/IP (X5MBTCP01X)
  • ProfiBus (X5PROFI01X)

Markets

The X5 HazLo is suitable for the following industries and applications

Applications in Class I: Division 2 locations

  • Petroleum refineries, and gasoline storage and dispensing areas
  • Dry cleaning plants where vapors from cleaning fluids can be present
  • Spray finishing areas
  • Aircraft hangars and fuel servicing areas
  • Utility gas plants and operations involving storage and handling of liquefied petroleum gas or natural gas
  • Water and wastewater facilities

Applications in Class II & III: Division 2 locations

  • Grain elevators; flour & feed mills
  • Producers of plastics, medicines and fireworks
  • Producers of starch or candies
  • Spice-grinding plants, sugar plants and cocoa plants
  • Coal preparation plants and other carbon handling or processing areas
  • Textile mills, cotton gins; cotton seed mills, flax processing plants and plants that shape, pulverize or cut wood and create sawdust

Specifications

Environmental Specifications

Operating Temperature

-10°C to +40°C (14°F to 104°F)

Storage Temperature

-20°C to +65°C (-4°F to 149°F)

Humidity

0% to 95% non-condensing

Altitude

1,000m (3,300ft) without de-rating

Maximum Vibration

Per EN50178: Frame Size 0 and 1, 5G

Acoustic Noise

80 dba sound power at 1m (3ft)

Cooling

Forced air (temperature controlled external fan)

Protection Level

UL Type 4X / IP66 indoor or outdoor use

Agency Approvals

The X5 HazLo is certified by UL for operation in USA and Canada per the following standards:

UL-listed Class I, Division 2; Groups A, B, C, D, Temp T3C per

  • ANSI / ISA 12.12.01
    • Non-incendive Electrical Equipment for Use in Class I and II, Division 2 and Class III, Divisions 1 and 2 Hazardous (Classified) Locations
  • CAN / CSA C22.2 No. 213-M1987
    • Non-incendive Electrical Equipment for Use in Class I, Division 2 Hazardous Locations
  • UL 508C
    • Standard For Power Conversion Equipment
  • CAN /CSA C22.2 NO.14-2010
    • Industrial Control Equipment

Download copy of the X5 HazLo UL certificate


Electrical Specifications

Input Voltage

380 - 460 Vac, 3-phase, +/- 15%
575 Vac, 3-phase, +/- 15%

Line Frequency

50 / 60 Hz +/- 2 Hz

Source kVA (maximum)

10 times the unit rated kVA (65kA maximum)

DC bus voltage for overvoltage trip, dynamic brake activation, normal undervoltage (UV) trip

460 Vac models: Overvoltage trip (814Vdc), Dynamic brake activation (776Vdc), Normal UV trip (397Vdc)
575 Vac models: Overvoltage trip (1017Vdc), Dynamic brake activation (970Vdc), Normal UV trip (497Vdc)

Control System

V/Hz or Sensorless Vector Control (SVC), Carrier frequency = 1 to 16 kHz programmable

Output Voltage

0 to 100% of line voltage, 3-Ph

Overload Capacity

120% of rated RMS current for 60 seconds (Normal Duty Rating)
150% of rated RMS current for 60 seconds (Heavy Duty Rating)

Frequency Output

Range: 0.1 - 400Hz; Stability: 0.1Hz, 0.1% analog over 24 hours +/- 10°C


Control Features

DC holding / injection braking

At start, stop, by frequency with adjustable current level and time and time or continuous DC injection by digital input.

Current limit

Four-quadrant adjustable from 5 to 150%

Speed ramps

Primary and alternate adjustable from 0.1 to 3200.0 seconds

Voltage boost

Adjustable fixed boost or adjustable auto boost

Voltage characteristic

V/Hz - Linear, pump, fan or 2-piece linear; Sensorless Vector

Timed Overload

Adjustable inverse time trip (shear pin, 30 sec, 60 sec, 5 minutes) for standard or inverter-duty motors

Protective features

Overcurrent, Overvoltage fault, ground fault, short circuit, dynamic Brake overload, drive temperature, power wiring fault. Drive-timed overload, input voltage quality, overvoltage ride through

Program Sequence Controller

25-step, PLC-type functionality that can control speed, direction and ramps based on time, analog input, digital input, or pulse input. Conditional branching, addressable outputs and real time operations possible.

PI and PID Feedback

Process control available with the use of a customer supplied transducer, either 0-10Vdc, 4-20mA or optical encoder input to the drive. Includes an optional sleep mode, activated when the loop is satisfied.


X5 HazLo Models

480 VAC 3-Ph

Model Number High Overload (150%)  Low Overload (120%)  Frame Dimensions Weight
Carbon Steel Stainless Steel HP kW Amps HP kW Amps    W x H x D (in.) lbs.
X5C40400X X5C40400Y 30 HP 22 kW 40 A 40 HP 30 kW 52 A T3 11.19 x 20.19 x 11.73 50
X5C40500X X5C40500Y 40 HP 30 kW 52 A 50 HP 37 kW 65 A T3 11.19 x 20.19 x 11.73 50
X5C40600X X5C40600Y 50 HP 37 kW 65 A 60 HP 45 kW 77 A T4 12.84 x 29.35 x 13.8 95
X5C40750X X5C40750Y 60 HP 45 kW 77 A 75 HP 55 kW 96 A T4 12.84 x 29.35 x 13.8 95
X5C41000X X5C41000Y 75 HP 55 kW 96 A 100 HP 75 kW 124 A T4 12.84 x 29.35 x 13.8 95

575 VAC 3-Ph

Model Number High Overload (150%)  Low Overload (120%)  Frame Dimensions Weight
Carbon Steel Stainless Steel HP kW Amps HP kW Amps   W x H x D (in.) lbs.
X5C50400X X5C50400Y 30 HP 22 kW 32 A 40 HP 30 kW 41 A T3 11.19 x 20.19 x 11.73 50
X5C50500X X5C50500Y 40 HP 30 kW 41 A 50 HP 37 kW 52 A T3 11.19 x 20.19 x 11.73 50
X5C50600X X5C50600Y 52 HP 37 kW 65 A 60 HP 45 kW 62 A T4 12.84 x 29.35 x 13.8 95
X5C50750X X5C50750Y 62 HP 45 kW 77 A 75 HP 55 kW 77 A T4 12.84 x 29.35 x 13.8 95
X5C51000X X5C51000Y 77 HP 55 kW 96 A 100 HP 75 kW 99 A T4 12.84 x 29.35 x 13.8 95

Type Code Key

Example Model Number for a X5 HazLo 40 HP Normal Duty, Carbon Steel Enclosure: X5C40400X
[X5] - Product, [C] - Configuration, [4] - Voltage Rating (480 Vac), [0400] - Power Rating (40 HP Low OL), [X] - Enclosure Class (Carbon Steel)
